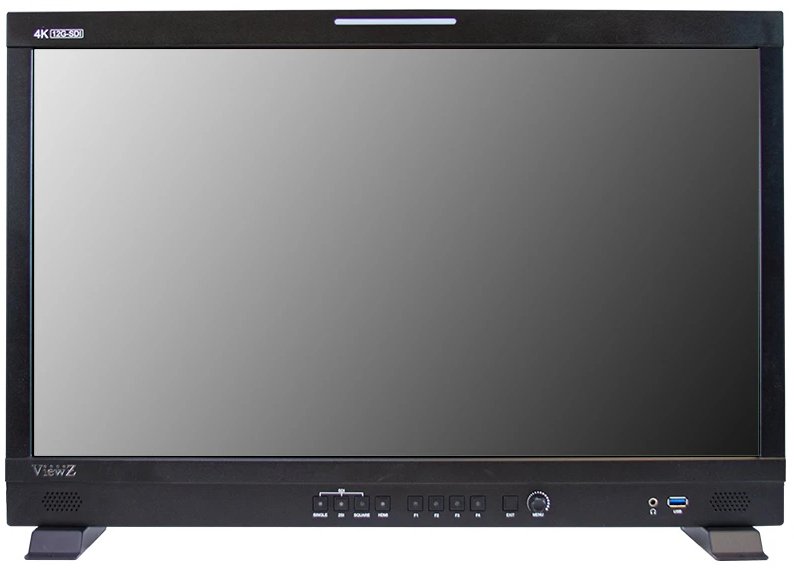

Viewz VZ-156PM-12G 15.6 in. 4K UHD Broadcast Monitor

ViewZVZ-156PM-12Gis a 15.6 Inch 4K UHD broadcast monitor, 330cd,m2, IPS 3840x2160 Pixels, 12G-SDI ,Quad SDI Inx4,Outx4, HDMI Inx1,Outx1, HDR (ST2084,HLG), Waveform,Vector Scope, False Color, Tally, Freeze, AC,DC(XLR) Operations.

• 15.6" 4K,12G-SDI Monitor
• All SDI signals Input - 12G-SDI,6G-SDI,3G-SDI (Level A, DL-B, DS-B) , HD-SDI,SD-SDI
• Quad SDI,Dual SDI,Single SDI,HDMI
• ST2084 , HLG , Time Code ( LTC , VITC )
• Loop-Through (SDI)
• False Color , Tally ( Red , Green , Yellow ) , Freeze
• Audio Channel Output 2ch (out of 16ch)
• Front User definable buttons F1 and F2
• Picture , (User) Marker , UMD
• Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
• Waveform,Vector Scope,Histogram
• Check Field,Exposure,HV Delay,Freeze
• False Color , Color Temperature , Color Space

• Screen Size: 15.6"
• Max Resolution: 3840 x 2160 @60Hz
• Pixel Pitch: 0.08970 mm x 0.08970 mm
• Brightness: 330 cd/m (Typical)
• Contrast Ratio: 1000-1
• Aspect Ratio: 16-09
• Viewing Angle (H/V): 176/176
• Display Color: 16.7 M
• HDR: ST2084 300/1000/10000/HLG
• Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
• LUT (Look Up Table): Support (3D LUT - .cube Format)
• Technology: Calibration to Rec.709 with Optional Calibration Unit
• Weight: 6.4 lbs
