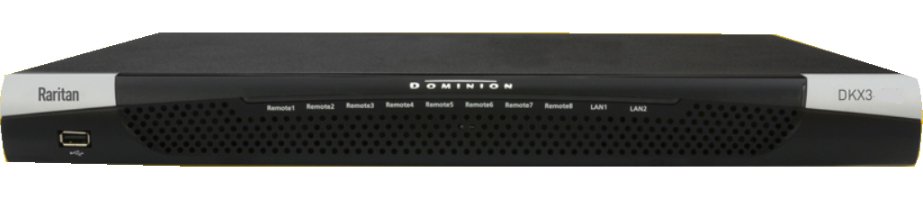

TheDominion KX IIIis an enterprise-class KVM-over-IP switch that provides 1, 2, 4 or 8 users with remote BIOS-level control of 8 to 64 servers. It comes with standard features such as DVI,HDMI,DisplayPort,USB-C digital and analog video, audio, virtual media, smart card,CAC with new smartcard,CAC,PKI login to KX III, blade server support, and mobile access. Deploy it alone, or with Raritan's CommandCenter Secure Gateway (CC-SG) for centralized access to all KX IIIs; or with the KX III or IV User Stations for high performance access.
Eliminate trips to the data center! Java-free Virtual Media lets administrators remotely install software, transfer files, and back up data. Manage up to 8 serial devices with the new Dominion Serial Access Modules (DSAM). Users can even access and manage servers via Apple iOS devices directly or through Raritan's CommandCenter Secure Gateway.
Features- BIOS Level Remote Access and Control
- Blazing, High Performance Audio and Video
- Digital and Analog Video
- Java-Free KVM with Virtual Media
- Military Grade Security
- KX III login via SmartCards, CAC and PKI
- Two-Factor Authentication and IEEE 802.1X
- Up to 8 True Serial Ports
- Mobile Access for iPad and iPhone
- Redundancy for Reliability
- Remote Power Control
- CC-SG Integration
- KX III SDK and API
Specifications- Form Factor: 1RU and 2RU full width, rack mountable (brackets included)
- Operating Temperature: Humidity 0 - 45 C (32 - 113 F), 0% - 85% RH
- Remote Connection Network: Dual 10/100/1000 gigabit Ethernet access; dual-stack:IPv4 and IPv6, DB9(F) DTE
- Modem Port Protocols: TCP/IP, HTTP, HTTPS, UDP, RADIUS, SNTP, DHCP, PAP, CHAP, LDAP, SNMP v2 and v3
- Local Access Port Video: Single Link DVI-D (F)
- Keyboard/Mouse Tiering Port: USB(F), 1 USB front, 3 USB rear, RJ45
- Sun Video Mode: 1024x768, 1152x864, 1152x900, 1280x1024
- Weight: 10 lbs
