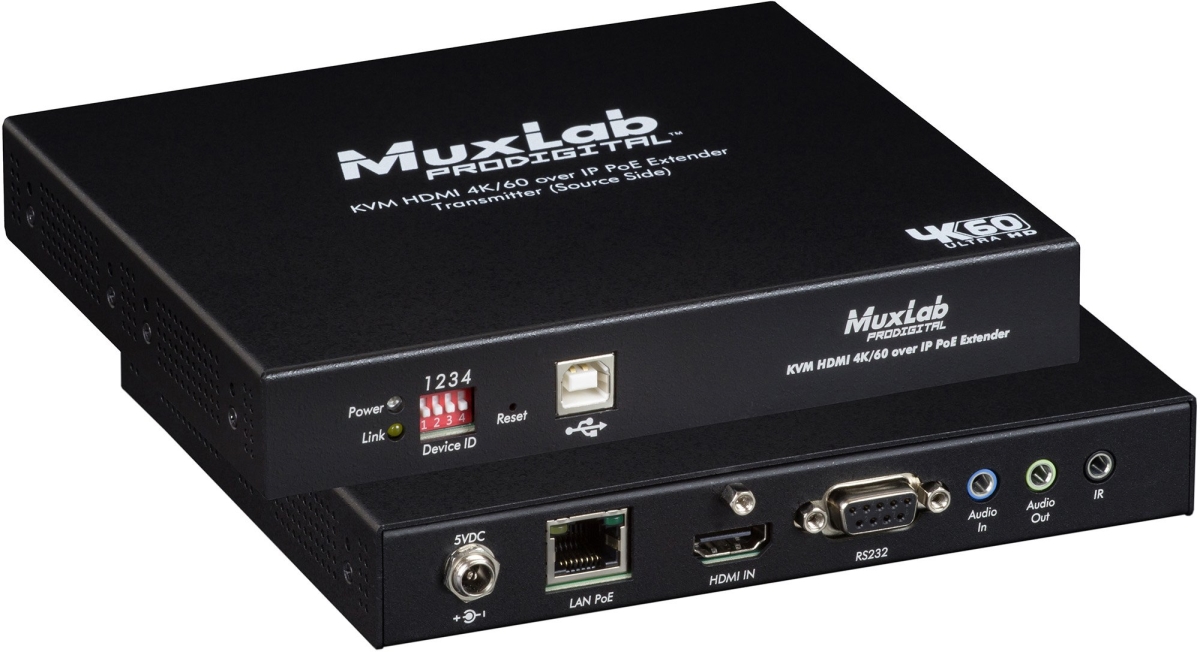

The KVM HDMI over IP PoE Extender,4K@60allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 60Hz (4:4:4) via Cat5e,6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500800-TX) and Receiver (500800-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmitter terminates to a computer server,workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers,workstations, in a distributed KVM application.
Features- One operator can manage multiple servers,workstations
- Supports HDMI up to 4K @ 60Hz (4:4:4)
- Receiver side includes a 4-port USB hub, for KVM applications
- Up to 330ft (100m) over Cat5e,6
- Supports 100's of Transmitters & Receivers depending on network bandwidth
- Supports multiple point-to-point, and point-to-multipoint applications
- Supports HDR
- PoE powered
- Supports audio insert & audio output (TX), and audio extract & mic-in (RX)
Specifications- Environment: HDMI 2.0
- Devices: Computers and servers withHDMI monitor ports.
- Transmission: Transparent to the user
- Bandwidth (HDMI): 597MHz
- Signals: HDMI 2.0 protocol, HDCP 1.4, HDCP 2.2
- HDR: Color HDR10 & Dolby Vision
- Latency: Typical one (1) Frame (16ms), maximum 2 frames (33ms)
- Compression: JPEG 2000
- Bandwidth: Up to 850 Mbps
- Network Requirement: 1000BaseT with PoE
- Cable: One (1) Cat 5e/6 or better twisted pair cables required
- PoE: Standard IEEE 802.3af
- Operating Temperature: 32 to 104F (0to 40C)
- Storage Temperature: -4 to 185F (-20to 85C)
- Humidity: Up to 95% non-condensing
- Weight: 1.5 lbs
