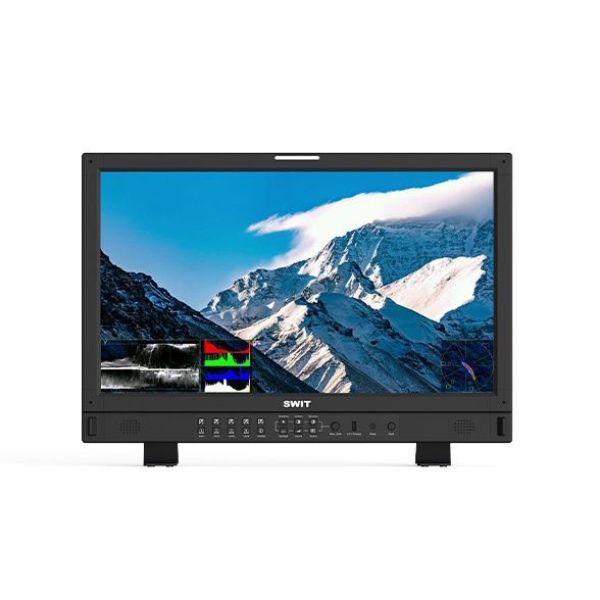

SWIT Electronics SWIT-BM-U245VM 23.8 in. UHD 4K 12G-SDI Reference Monitor with V-Mount

SWIT BM-U245 is a 23.8-Inch UHD 4K 12G-SDI Reference Monitor with a V-Mount battery plate. The BM-U245 adopts a 23.8-inch 10bit LCD panel, UHD 3840 x 2160 resolution, 300nits LED backlight, 10001 contrast, and 94.1% DCI-P3 color gamut. The viewing angle for the BM-U245 is H178 / V178 .

• Size: 23.8 inches
• Display Area: 527.04x296.46mm
• Resolution: 3840x2160
• Color Depth: 1.073G colors, 10-bit
• Signal Process: 18-bit
• BNC x4: 12G/6G/3G/HD/SD-SDI input
• HDMI x1: HDMI 2.0 input
• RS485 x1: TSL 3.1/4.0 UMD input
• RS485 x1: GPI (Tally) input
• BNC x4: 12G/6G/3G/HD/SD-SDI loop output
• RS485 x1: TSL 3.1/4.0 UMD output
• Analog Audio: 3.5mm headphone and speaker
• Input voltage: DC 12V-17V, AC 100-240V, 50/60Hz
• Power Consumption: 70W
• Weight: 35 lbs
