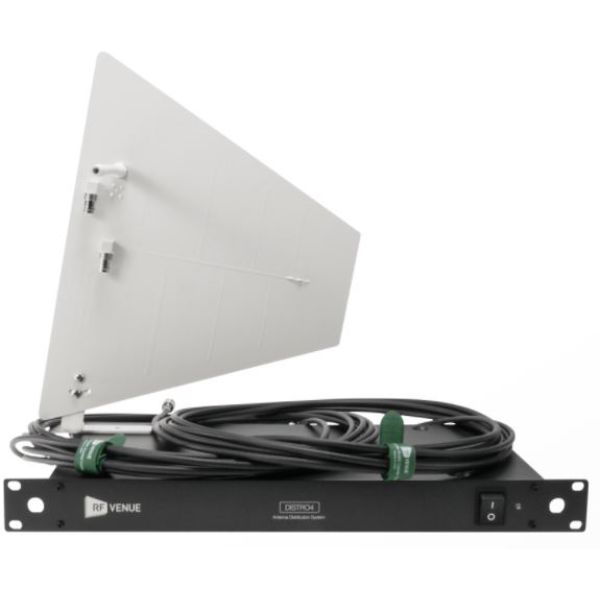

RF Venue RFV-DFINDISTRO4W Diversity Fin Antenna DISTRO4 Package, White

The RF Venue DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair. DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4. The DISTRO4 is also bundled with a Diversity Fin antenna and coax cables.

• Frequency Range: 470-952 MHz
• Power consumption: 60 W
• Input AC voltage: 100
• DC over coax (to external antennas): 12-14 VDC
• Output DC voltage (to receiver jacks): +12 V
• Output DC connectors: 5.5mm OD, 2.1mm ID
• Bandwidth: 228 MHz
• Operating frequency: 470-698 MHz
• Dimension: 480(W) X 45(H) X 250(D) mm
• Weight: 8.95 lbs
