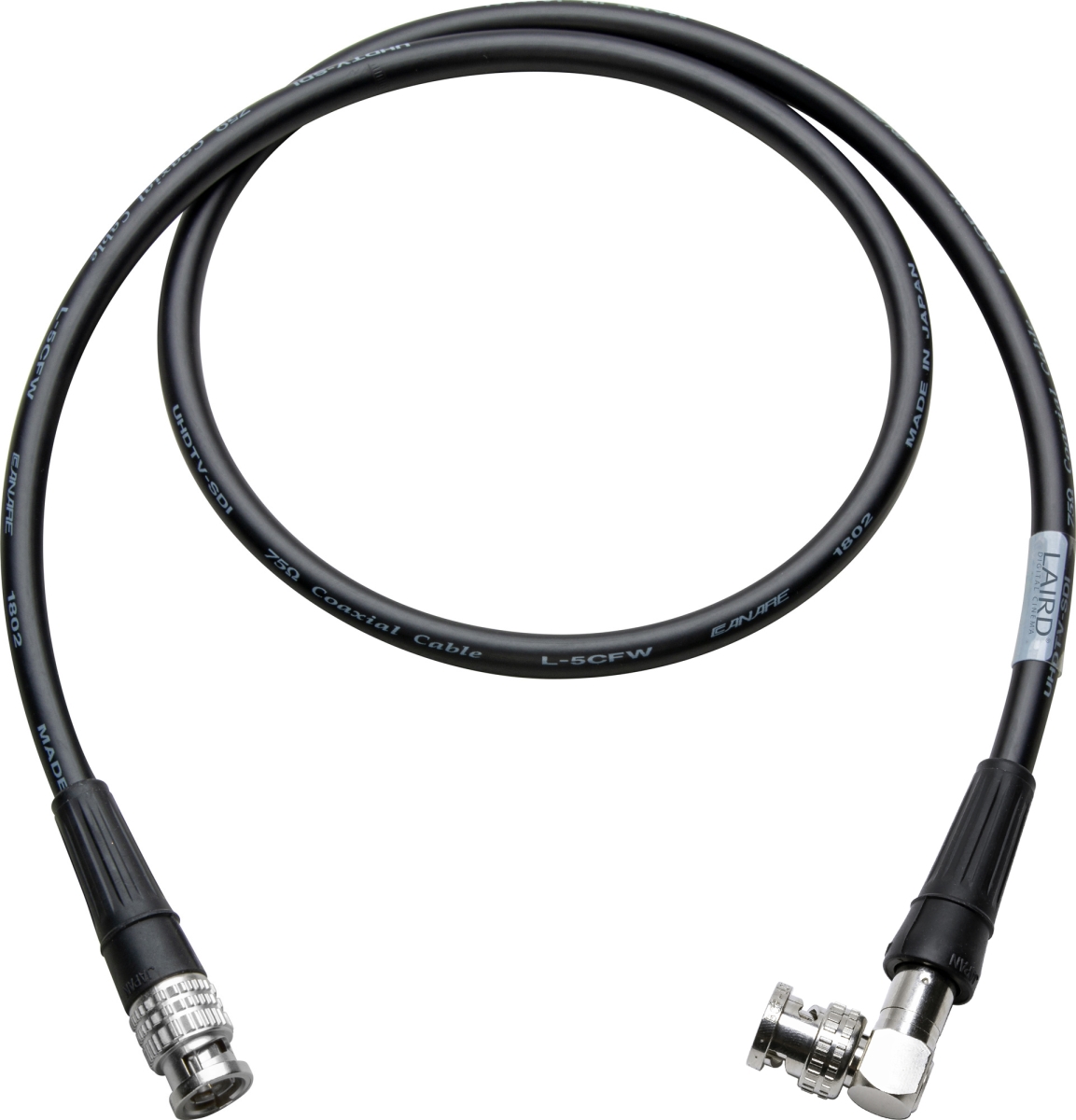

Laird Digital Cinema SD6-BBA-150 125 ft. Canare L-5CFW HD-SDI & SMPTE 424M RG6 BNC to Right Angle BNC Cable, Black

This super flexible series is hand crafted in our shop with Canare L-5CFW HD-Serial Digital Flexible RG6 Coaxial Cable and Canare BCP-B51F and BCP-LC5F BNC Connectors. The Canare L-5CFW coax used in our BNC cables is 100% sweep tested to conform to SMPTE 259M, 292M and 424M standards. This means our BNC cable is ready to meet today's requirements for 3 Gbps signal / data serial interface as well as your most demanding productions.

• Compatible with DMX-512A (RDM) and DMX-512 (1990)
• Switchable DMX Termination on input
• Timing-safe mode filters and retimes incoming signal
• Fully isolated input and output ports
• Multi-function LED status indicator for each port

• Color: Black
• Structural Return Loss: >20dB at 2GHz
• Nominal O.D.: 0.303
• AWG: 18 Solid
• Nominal Impedance: 75 Ohms
• Nominal Capacitance: 17 Pf / Ft.
• Weight: 9.05 lbs
