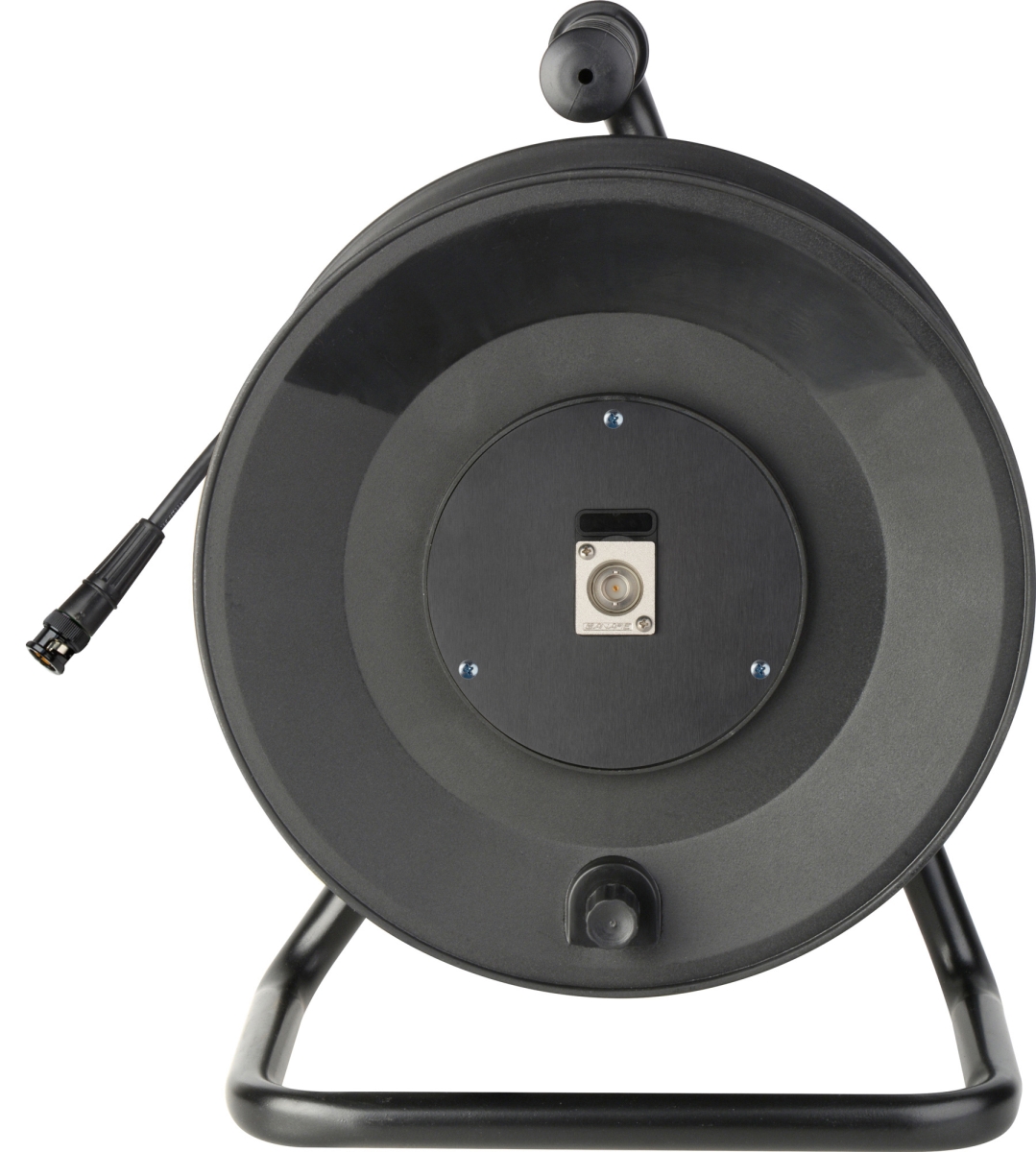

JackReel Cable Reels MKR-1-1694F-050 50 ft. Deluxe Single Channel Belden 1694F BNC Cable

Built on JackReel infrastructure, the MKR-1-1694F series delivers instant deployment of the flexible Belden 1694F RG6/U BNC video cable in studios, trucks, and especially in the field. Use the handy rewind knob to instantly coil up the cable when you're done. The cable keeps its natural shape without bending or crimping, thus extending its life. Industry standard Belden Precision Digital Coax Cable is paired with premium Trompeter BNC connectors. The MKR-1-1694F is lightweight yet extremely rugged with an injection molded structural plastic that can withstand years of field use!

• Neutrik 3-Pin XLR Female Connector with Black Metal Housing and Gold Contacts
• Sescom Star-Quad Cable Features a Rugged Cable Overbraid for Added Protection and Distinctive Looks
• Black & Blue Overbraiding to Stand Out in The Light Yet Blend Into the Stage
• Hermetically sealed and magnetically operated switch

• Size: 50 ft.
• AWG: 19
• Stranding: Stranded
• Nom. Capacitance Conductor to Shield: 7.0 pF/ft.
• Nominal Conductor DCR: 8.5 Ohm/1000ft.
• Nominal Diameter: 0.04 in.
• Nominal Characteristic Impedance: 75 Ohm
• Feed-Through Hole Diameter: 0.469"
• Overall Reel Height: 15"
• Outer Hub Diameter: 10.75"
• Center Hub Depth: 5"
• Center Hub Diameter: 4.75"
• Min Bend Radius/Minor Axis: 2.75 in.
• Material: BC - Bare Copper
• Weight: 7.34 lbs
