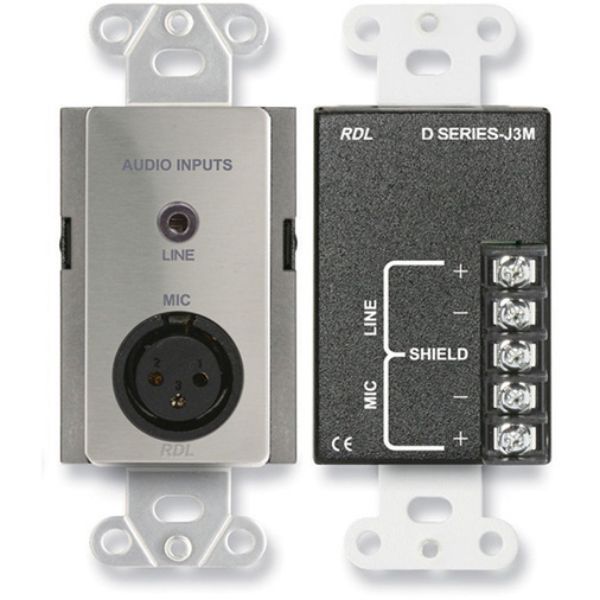

Radio Design Labs RDL-DS-J3M Mic & Line Input Assembly for XLR Mini Jack Terminal Block, Stainless

The D SERIES-J1, -J2 and -J3 are audio input accessories from Radio Design Labs offered in Decora plates. The D SERIES panels are finished in RDL's grey/white, black or in stainless steel. These input panels are intended for installations demanding the ultimate in professional styling combined with durability, longevity and value. The D SERIES-J1, -J2 and -J3 fit directly into RDL back boxes (WB-1U, WB-2U) to fit cabinets, US or international walls. The back of each panel assembly is finished with a metal enclosure clearly labeled for easy installation.

• Wall Mounted Audio Inputs
• XLR Microphone Input with Gold Contacts
• Mini-Jack Line Inputs
• Hum Cancellation on Unbalanced Line Inputs
• Transformer Isolation for Unbalanced Line Inputs
• Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

• Color: Stainless
• Output Connector: Terminal Block
• Frequency Response: 30 Hz to 20 kHz (+/-1 dB line level)
• Power Requirement: Passive
• Dimension: 4.13 x 1.7 x 2.15 in.
• Weight: 0.51 lbs
