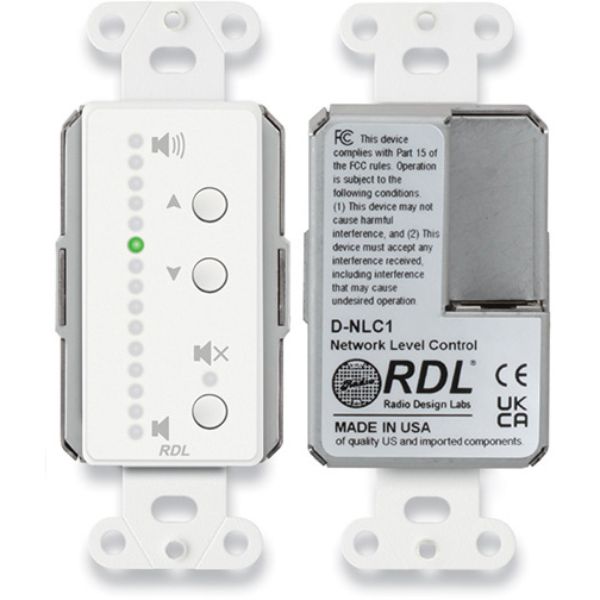

Radio Design Labs RDL-D-NLC1 Dante Network Level Remote Control Wall Plate with LEDs, White

The RDL D SERIES NLC1 is a remote control that provides volume control at single or multiple locations. The NLC1 connects to a digital network that may include compatible RDL audio and control modules as well as Dante devices from RDL and other manufacturers. Level is displayed on a 15 segment LED string. Each NLC1 operates as a Controller or Satellite control permitting up to eight units to work together to adjust levels. Setup is accomplished in a web-browser session hosted by the NLC1. Volume may be configured to adjust a group of outputs or to adjust one output. If grouped outputs are set to different attenuation levels, the output level offsets in dB are preserved while adjusting the group level. Audio Mute is provided on one button with an associated status indicator. The Mute condition is cancelled by pressing the Mute button again or by pressing either the Up or Down button.

• Pushbutton Level Remote Control
• LED String Display
• Mute Button with LED Indicator
• Programmable Operation and Attenuation Steps
• Configurable for Buttons Always Enabled or Auto-Locking
• May Operate as a Controller or a Satellite
• Selectable as Satellite to a D-NMC1 or D-NLC1 Controller
• Compatible with DD-RN and Other RDL Products
• 1x RDL D-NLC1 Dante Network Level Remote Control Wall Plate with LEDs - White

• Color: White
• Network Connector: RJ45 with Link and Activity indicators
• Transmission Rate: 100 Mbps
• Power Requirement: PoE Class 0, IEEE 802.3af
• Weight: 0.5 lbs
