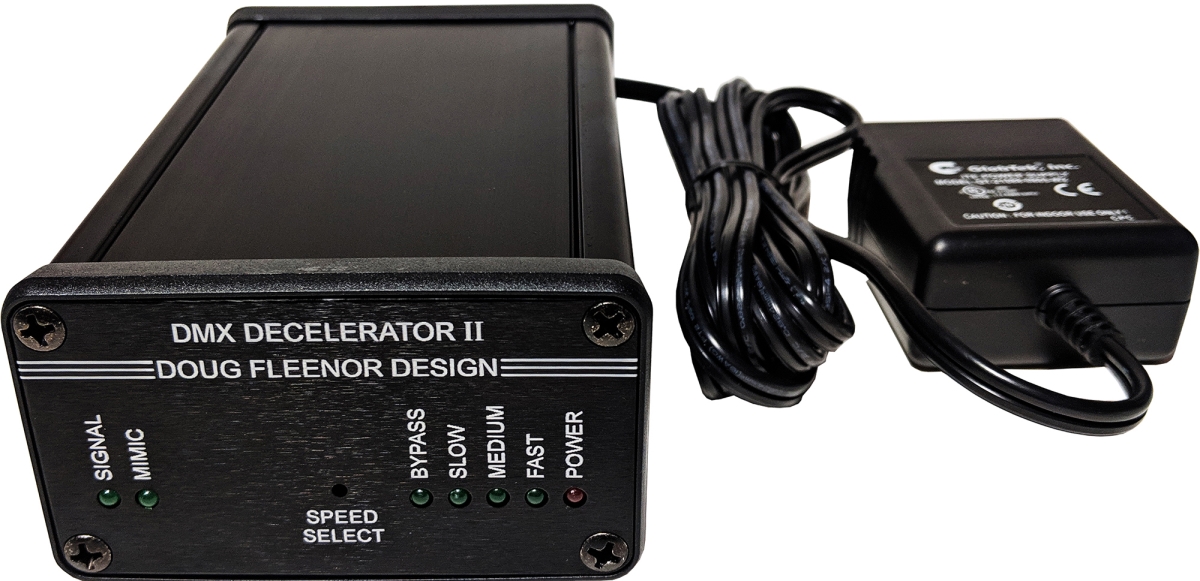

Doug Fleenor Design DMXDECELERATORII 3-Pin XLR 3 DMX Timing Decelerator

The DMX DECELERATOR II is a DMX512 isolator and re-timing device. It can receive any signal within the DMX512 specification and it can accept some signals outside of the specification. It produces a DMX output signal with "relaxed" timing characteristics which are required by some DMX receiving devices. In addition, a BYPASS mode is provided. When this mode is selected, the DMX DECELERATOR II copies the timing from the input signal to the isolated output directly with no changes. This can be useful for diagnosing problems with isolation versus timing.

• Easy mounting to the left or right
• Minimal visual impact
• Flexible adapter system fits most professional wireless systems

• Input power: 100 - 240 VAC, 50 - 60Hz, 0.5A
• Input isolation: 600 Volts
• Output connector: Gold plated 5 pin female XLR
• Weight: 1 lbs
