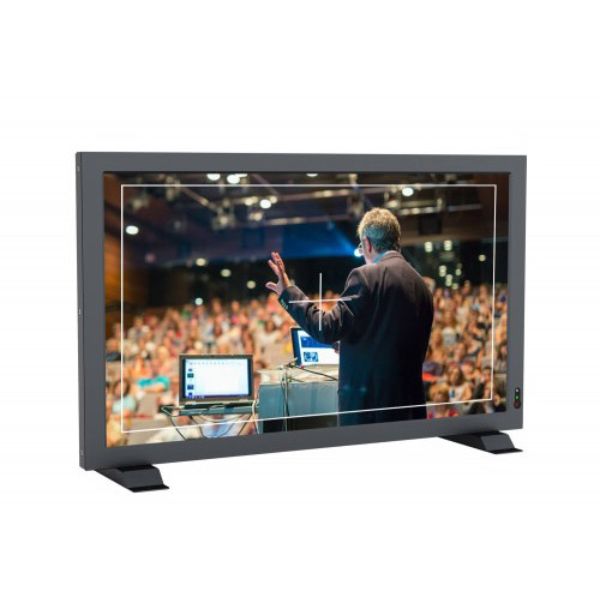

The Lilliput PVM210S SDI - HDMI input monitor is a sturdy and solid addition to your performance capture or exhibition showplace setup. Designed for use as an assistant or confidence monitor in live show production, or as a preview - editing display in a video editing suite, it will fit into any number of workflows and production environments.
Depending on the specific way you will be using the monitor, there are hundreds of places it can be configured to fit. With a robust suite of both current and legacy input connections - such as 3GSDI HDMI, DVI, and VGA - along with analogue AV - it can accept inputs from cameras, and mixing desks and suites - any video source of your choice. Need a monitor for a stage performance or presenter to use as a confidence monitor The PVM210 has you covered.
Looking to use the PVM210S in an editing suite or an office. It can be mounted to a wall or any flat surface using the VESA 100 mounting hole set and any suitable wall mount.
With fluctuating audio sources being a constant in the recording world, we provide the PVM210 unit with built in audio level monitoring so as to make it easy to spot when your source audio peaks too high and clips, or could ruin a take through excessive interference.
HDR lighting is a must for all modern monitors and TV sets, and the PVM1210 is no slouch in this department. With support for HLG, ST2084 300, 1000, 10000 formats you can be assured of a good representation of the brighter, bloomy lights of your shots.
Features- HDMI1.4 supporting 4K 30Hz
- 3G-SDI input & loop output
- 1000cd- high brightness
- 1920x1080 high resolution
- Support multiple video input interfaces SDI, HDMI, VGA, AV
- FN User-definable function button
- HDR supporting HDR10_300, HDR10_1000, HDR10_10000, HLG
- Color temperature 6500K, 7500K, 9300K, User
- Markers & aspect mat pixel to pixel, zoom, aspect
- Scan fullscan, underscan, overscan
- Marker color red, green, blue, mono
Inputs:- SDI Video Inputs: 2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60
- HDMI Video Inputs: 2160p 24 / 25 / 30 / 50 / 60 :: 1080p 24 / 25 / 30 / 50 / 60 :: 1080i 50 / 60 :: 720p 50 / 60
Specifications- Aspect Ratio: 16:09
- Brightness: 1000cdm
- Contrast Ratio: 1500:01:00
- Resolution: 1920 x 1080 - 101% REC.709
- Viewing Angle: 170 deg - 170 deg
- Screen Size: 21.5"
- Dimension: 524.8 mm x 313.3 mm x 19.8 mm
- Audio Output: 2x Speakers
- Input Voltage: DC 12-24V
- Power Consumption: <=36W (15V)
- Operating Temperature: 0 deg c to 60 deg c
- Storage Temperature: 20 deg c to 60 deg c
- Weight: 19 lbs
