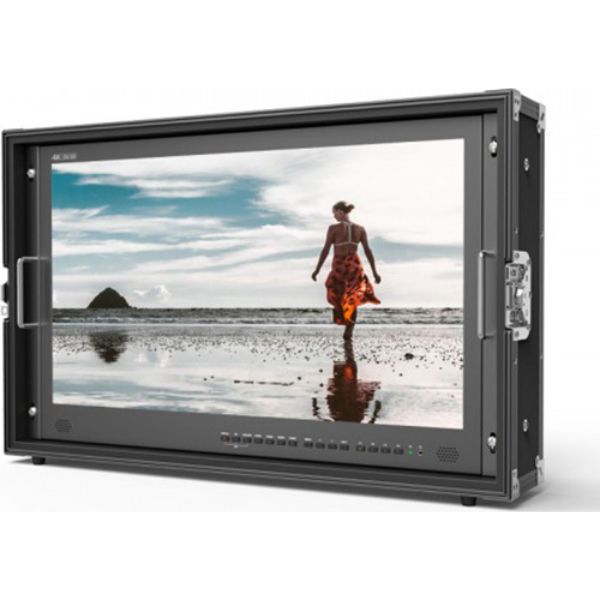

The Lilliput BM280-12G is a 28 inch 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.
The BM280-12G has two SDI input standards - ST425-3, which uses the 4x SDI inputs to carry 0.25 of the overall screen image, and ST425-5 which allows you to knit together the 4 SDI inputs and interleave them over each other. Both of these allow for a full 4K image over the 4x 3G SDI connections.
4K Ultra-HD resolution - The BM280-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.
12G SDI Input - The BM280-12G monitor has a 12G-SDI Single link input and output loop onboard. It can support 12G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.
Solid transmission distances - the BM230-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 12G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the eye in the signal wave as shown on an oscilloscope. The BM280-12G has a tall eye when analysed, which highlights the strength and jitter-free quality of the signal.
Features- Versatile 4K-QFHD input capability
- This monitor is equipped with standard 12G-SDI input interface x2, 3G-HD-SDI input interface x2 and support 4K 2-sample interleave signals and 4K square division signals
- Supporting 12G-6G-SDI 4K 2 channel, 3G-HD-SDI Level A-B 2 channel
- Quad link square division
- Quad link 2 sample interleave 2SI
- Ultra HD 4K screens containing 8.3 million pixel 3840x2160, so the resolution is four times that of Full HD
- Image flip offers great convenience for users to place the monitor with various mounting methods under different conditions
- Users can view the monitor normally no matter what mounting angles
- Video loop output uncompressed true 10-bit or 8-bit 422
Supported In / Out Formats:- SDI - 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- HDMI - 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio):- SDI: 12ch 48kHz 24-bit
- HDMI: 2ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Specifications- Size: 28"
- Resolution: 3840x2160
- Brightness: 300cd/m
- Aspect ratio: 16:09
- Viewing Angle: 170 deg / 160 deg (H/V)
- SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
- HDMI: 1xHDMI 2.0, 3xHDMI 1.4
- Operating power: 61.5W
- DC In: DC 12-24V
- Compatible batteries: V-Lock or Anton Bauer Mount
- Input voltage (battery): 14.4V nominal
- Operating Temperature: 0 deg C-50 deg C
- Storage Temperature: 20 deg C-60 deg C
- Weight: 51 lbs
