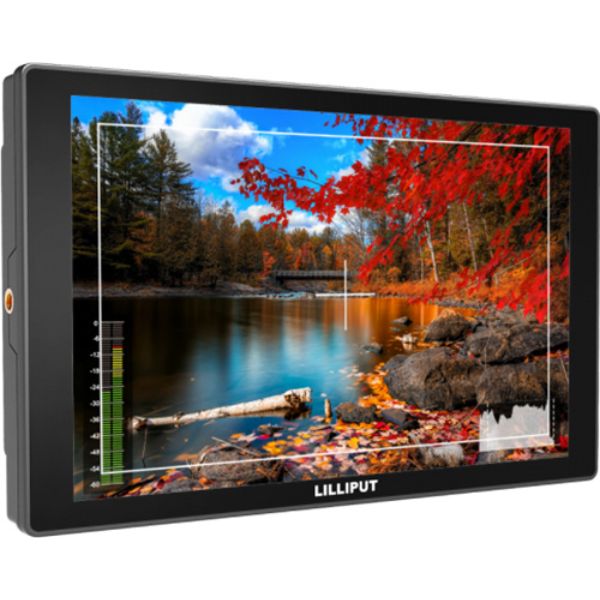

Lilliput A11 is a 10.1 inch 4K compatible monitor with a 1920 x 1200 px panel, and HDMI 1.4b SDI connectivity. The Lilliput A11 has been designed for the video and film industry professional and is ideally suited for directors and camera operators operating 4K capable equipment.
The Lilliput A11 matches with world-famous 4K - FHD camera brands to assist camera operators in acquiring better photography and gives a much more satisfying experience for variety of applications, i.e. filming on site, broadcast live action, moviemaking and post-production, etc.
The Lilliput A11 has a 1920x1200 native resolution, 10.1 inch 8 bit LCD panel - which allows for a level of detail far beyond what the human retina can identify. Features include 1000:1, 320 cd-m2 brightness and a 175 deg viewing angle.
With full lamination technology you can see every detail in massive Full HD visual quality.The Built in HDMI 1.4b port supports 4K 30Hz signal input, while the 3G-SDI BNC port supports 3G-SDI, HD-SDI and SD-SDI signal inputs. A Universal VGA port is also included which allows for more legacy usage environment.
The Lilliput A11 also features unique glass plus glass technology, creating a smooth appearance for its outer body. It facilitates the best view possible and allows the user to achieve the best photography that they can.
Features- 10.1 inch 8bit IPS
- 1920x1200 resolution
- 16-10 aspect ratio
- 175 deg - 175 deg viewing angle
- 1x 3G-SDI, 1x VGA, 1x HDMI 4k 30Hz support, 1x Mini USB Inputs
- 1x 3G-SDI Loop, 1x HDMI 4k 30Hz support, 1x Speaker, 1x Earjack Outputs
- FHD resolution
- 4k HMDI-3G-SDI
- Glass plus glass technology
- VESA 75 mm mount design
Specifications- Screen Size (diagonal): 10.1" - (25.65 cm) 8bit IPS
- Aspect Ratio: 16:10
- Native Resolution: 1920x1200
- Dimensions: 252mm x 157mm x 25mm
- HDMI Formats: 4K 30hz / 1080p / 1080i / 720p / 576p / 576i / 480p / 486i
- Power Consumption: <= 13 W
- Viewing Angle (degrees): 175 deg / 175 deg
- Brightness Ratio (cd/m2): 320
- Video Inputs: 3G-SDI (input) x1 / HDMI 1.4b x1 (supports 4K 30 Hz) / VGA x1
- Video Outputs: 3G-SDI Loop (Output) x1 / HDMI 1.4b x1 (supports 4K 30 Hz)
- Audio Outputs: Audio Speaker x1 / Audio Ear Jack x1
- Input Power: 12V 1A / Comaptible with DC 24V
- Operating Temperature: 0 deg C - 50 deg C
- Mounting Options: Hot Shoe Mount (Supplied) / V-Mount / Anton Bauer mount (Optional) / Gimbal Bracket (Optional) / VESA 75 Stand (Optional)
- Storage Temperature: 20 deg C to +60 deg C
- Weight: 3.59 lbs
