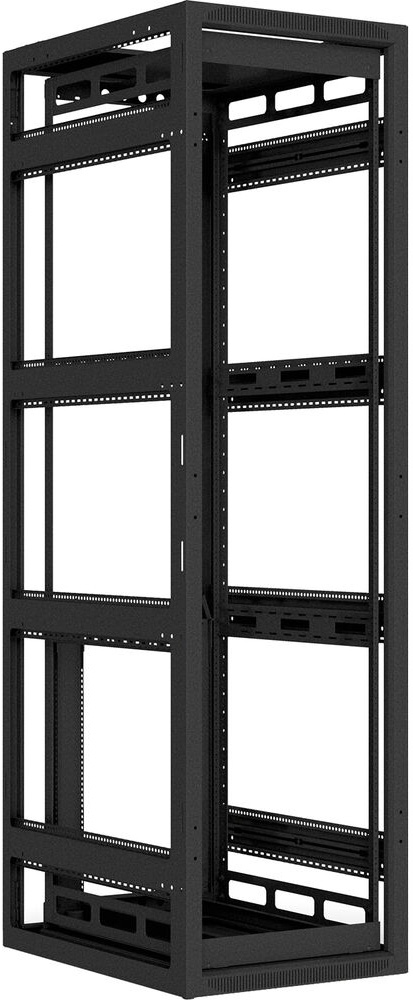

Middle Atlantic Products MAP-AXS-IR452720 45 RU AXS Series IR Rack

The Middle Atlantic AXS-IR-4527-20 can roll entire bays of equipment straight out for service and installation flexibility. A factory-assembled AXS system in a rack is ideal for access to rear equipment connections or when space-limited environments require equipment bays to be placed up against a wall.

• The rack can be pre-installed on-site allowing for equipment installation and cabling to be done off-site in the axs system
• Seismically rated when installed with axs-ir-z4k kit
• Axs includes standard fixed front and rear 10-32 threaded rackrail with numbered spaces
• Includes extending cable carriers for effective cable management when the axs is pulled out or retracted
• Includes rack, rack frame, cable carriers, base, and safety leashes
• Service track
• Accepts standard bgr options like doors, side panels, tops, etc

• Depth: 27 in.
• Height: 83.75 in.
• Panel Width: 19 in
• Rack Units: 42 RU
• Usable Depth: 20 in.
• Usable Height: 73.5 in.
• Width: 23 in.
• Base Series: AXS
• Country of Origin: USA
• Gangable: Yes
• Rack Rail Type: 10-32
• Weight: 183 lbs
