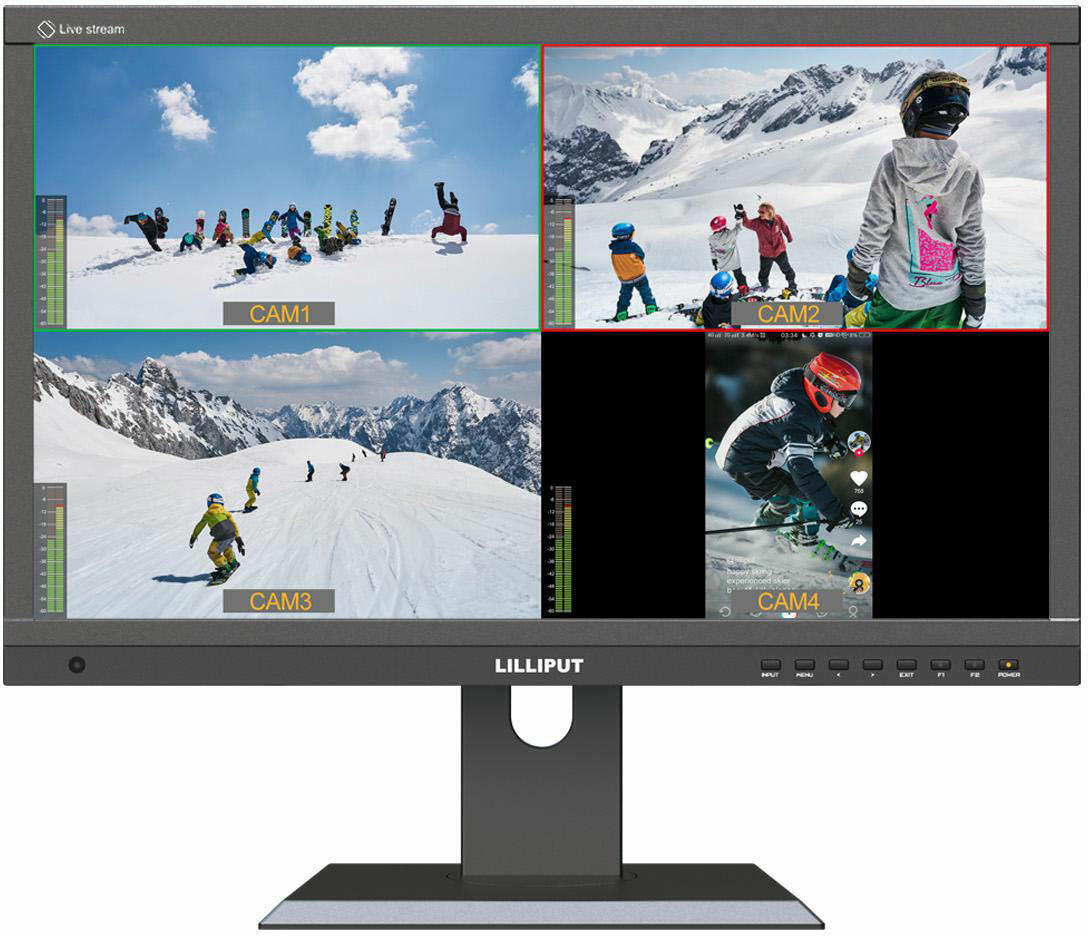

Multi Camera,Multiview SwitchMonitor can be switched live up to 4 1080P high quality video signal inputs, which make it easy to create professional multi camera events for live streaming. At a time when live stream in mobile phone is popular, monitor innovatively built in phone mode so as to directly display a vertical video in multi camera. All-in-one capability greatly reduces the cost of productions.
The Lilliput PVM220S 21.5 inch live stream multiview monitor for Android mobile phone, DSLR camera and camcorder.Application for live streaming & multi camera. The live monitor can be switched live up to 4 1080P high quality video signal inputs, which make it easy to create professional multi camera events for live streaming. There are multi camera video sources can be set up as Preview source and finished Program source for quick switching source of live streaming to video capture via shortcuts, and finally to Youtube, SKype, Zoom and any more social media platforms.
PVW / PGM Video SDI, HDMI Output SimultaneouslyPGM ports for switching camera video from SDI, HDMI and USB Type-C signals. The Multi camera video sources can be set up as Preview source and finished Program source for quick switching source of live streaming to video capture via shortcuts, and finally to Youtube, SKype, Zoom and any more social media platforms.
USB Type-C Input, Vertical Full Screen For PhoneThe Unique phone mode, adapts to vertical image output from phone camera. Unlike the regular video camera, some phone's video sources are displayed as vertical images. Multiview mode is innovatively blend of horizontal and vertical images layout, making live production more efficient.
Camera Auxiliary FunctionsPlenty of auxiliary functions for live streaming and multi camera productions, that assist user grasp the scene details in front of camera more thoroughly, such as light, color, layout and so on.
Features- WorkflowsSupports up to 4 live video signals, that can use HDMI or SDI outputs for program video
- All the live events can also be cut between PVW and PGM, incredibly doing the work as a video switcher
Specifications- Panel: 21.5"
- Physical Resolution: 1920x1080
- Aepect Ratio: 00:00
- Brightness: 500 nit
- Contrast: 1500:01:00
- Viewing Angle: 170deg/170deg (H/V)Video Input
- SDI x2: 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more
- PGM HDMI/SDI x1: PGM HDMI/SDI, x1 1080p 60/50/30/25/24Audio In/Out
- SDI: 2ch 48kHz 24-bit
- HDMI: 2ch 24-bit
- Ear Jack: 3.5mm
- Bulit-in Speaker: 1Power
- Input Voltage: DC 12-24V
- Power Consumption: =33W (15V)Environment
- Operating Temperature: -20degC~60degC
- Storage Temperature: -30degC~70degCOther
- Dimension (LWD): 508 x321 x47mm
- Weight Capacity: 5.39kg
- Weight: 29 lbs
