15.6 in. 4K HDMI Carry-On Broadcast Monitor with SDI HDR & 3D LUTS Anton Bauer Mount

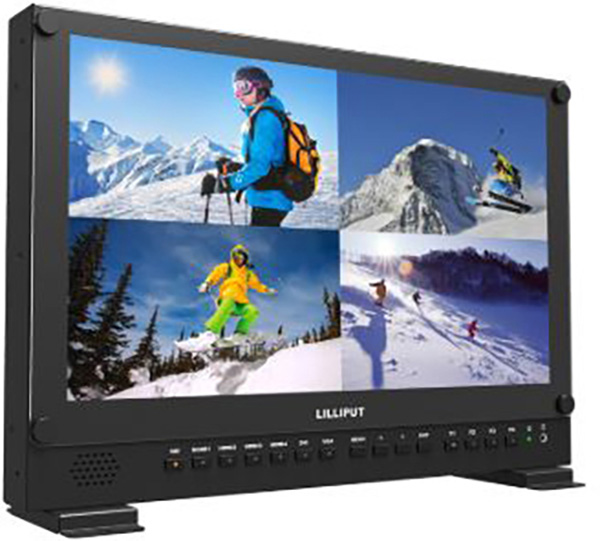

This Lilliput BM150-4KS-ABBP is a 4K HDMI carry-on broadcast monitor with SDI, HDR, and 3D LUTS. This monitor comes equipped with an Anton Bauer mount battery plate.
The BM150-4KS-ABBP supports multiple signal inputs 3G-SDI, HDMI, DVI and VGA. It supports uploads to the 3D-LUT table via the USB port. With image flip, it offers a great convenience for users to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles. With multiple recordings happening at the same time, the BM150-4KS-ABBP has a quad view that is split from different input singles simultaneously.
This 15.6-Inch broadcast monitor is the perfect travel size, allowing you to pack it right in your suitcase. The BM150-4KS-ABBP is equipped with HDR, color space, 3D-LUT, peaking, and many other functions.
Features:
- Support multiple signal inputs 3G-SDI, HDMI, DVI and VGA
- Multiple View Display supports quad view split from different input singles simultaneously
- Ultra HD 4K screens containing 8.3 million pixel (3840x2160), so the resolution is four times that of Full HD
- 3D LUT for Accurate Color Reproduction and Color space display
- (Native/Rec.709/User1User3)
- Support to upload 3D LUT table via USB port
- Equip HDR function
- Image flip offers great convenience for user's to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles
- Perfect size for both suitcase and rack mount
- Wireless HDMI function (optional)
Specifications:
- Display
- Display Screen: 15.6" 8bit
- Physical Resolution: 3840x2160, 4K
- Aspect Ratio: 16:9
- Brightness: 330cd/m²
- Contrast: 1000:1
- Viewing Angle: 176°/176°(H/V)
Input - 3G-SDI: 1
- Wireless HDMI: 1 (optional)
- HDMI: HDMI 2.0x1 ([email protected]) HDMI 1.4x3 ([email protected])
- DVI: 1
- VGA: 1
- USB: 1 (3D-LUT)
- Audio: 2 (L/R)
- TALLY: 1
Output - 3G-SDI: 1
Audio - Speaker: 1
- Ear Phone Slot: 1
Power - Current" 1.2A (15V)
- Input Voltage: DC 12-24V (XLR)
- Battery Plate: V-mount / Anton Bauer mount
- Power Consumption: ≤18W
Environment - Operating Temperature: 32° to 140°F (0° to 60°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
Dimension - Dimension(LxWxD): 15.31 x 10.51 x 1.50" (389 x 267 x 38mm)
- Dimension(LxWxD)(with case): 20.63 x 12 x 6.69" (524 x 305 x 170mm)
- Weight: 7.50 LBs (3.4kg)
- Weight (with case):26.45 LBs (12kg)
SDI Format - SMPTE-125M: 480i(59.94)
- SMPTE-274M: 1080i(60/59.94/50); 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
- SMPTE-292M: 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
- SMPTE-296M: 720p(60/59.94/50/30/29/25/24/23.98); 720p(60/59.94/50)
- SMPTE-372M: 1080i(29.97/25/24/23.98); 1080p(60/59.94/50/30/29.97/25/24/23.98)
- SMPTE-425M: 1080p(60/59.94/50)
- ITU-R BT.656: 576i(50)
HDMI Format - 4K: 4096x2160/ 3840x2160
- Other: 1080p, 1080i, 720p, 720i, 480p
Item Includes:
- 1 x Folding sun shade cover
- 1 x TALLY connector (in bulk)
- 1 x Anton Bauer Mount Power cable
- 1 x Anton Bauer Mount
- 1 x Manual
- 1 x Carry-on suitcase
- 1 x 15V DC adapter
- 1 x Battery plate bracket
- 2 x Adapter fixing belt
- 1 x Base bracket
