Lightronics LGT-AF5113 Unity Architectural Remote Station

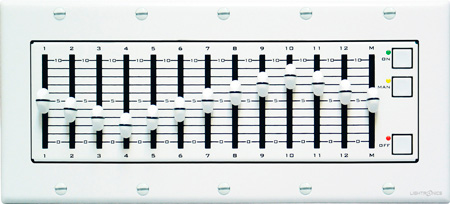

The AF5113 is a twelve scene, wall mount remote control unit intended for use with the Lightronics AR1202 Architectural dimmer. The unit fits in a standard five gang wall switch box. All power and data connections are via a 4 wire communication bus between itself and the AR1202 dimmer. In addition to manual fader control of twelve scenes, a master fader is provided. The master fader enables intensity control for all twelve scenes. Pushbutton switches are included to activate a blackout and full on selection. LED indicators provide status feedback. Multiple units may be chained together to provide dimmer control from various locations. The AF5113 may also be used with other Lightronics architectural remote stations.

• 12 Scene Fader Station with Master
• Fader Scene Control
• Status LEDs and Blackout
• RS-485 and Five Gang Box
• Low Voltage

• Scenes: 12 + Master Fader
• Communication Bus: Bidirectional RS-485
• Power Input: 18V DC Provided by AR1202
• Dimension: 4" H x 9.125" W x 2.5" D
• Weight: 1.1 lbs
