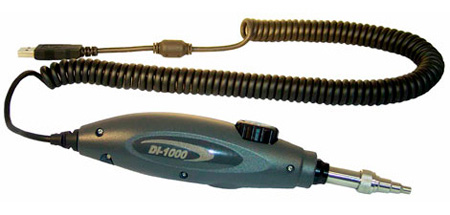

The DI-1000 inspects fiber optic connector endfaces, providing clear sharp digital images on your Windows PC. It can be used with XP, Vista, and Windows 7 on either 32-bit or 64-bit computers. No batteries or power cables are necessary. Uses LIGHTEL's Series 2 Tips and come with a soft case designed to fit easily into a standard laptop case. The ergonomically designed DI-1000 is Lightel's all digital video microscope probe. It connects directly to your PC through the computer's USB2.0 port. Featuring easy single finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5 m, the DI-1000 package includes our free ConnectorView (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools. The DI-1000 uses Series 2 inspection tips, and can also use all our CI-1000 tips with an optional adapter.
Features- Fast, easy focus
- One hand operation
- Inspect patchcords (male) and in-adapter connectors (female)
- Direct USB2.0 connection to PC
- Powered by USB connection
- Built-in freeze/capture button
- Slim ergonomic design
- Rapid tip change
- Comprehensive line of tips
- Digital zoom
Includes- 1 USB2.0 digital inspection probe
- 1 Universal tip for 2.5mm male PC type connectors
- 1 Universal tip for 1.25mm male PC type connectors
- 1 Tip for SC and FC female PC type connectors
- 1 Tip for LC female PC type connectors
- 1 Small tip box
- 1 Soft carrying case for DI-1000
- 1 ConnectorView (Standard) software CD and manual
Specifications
