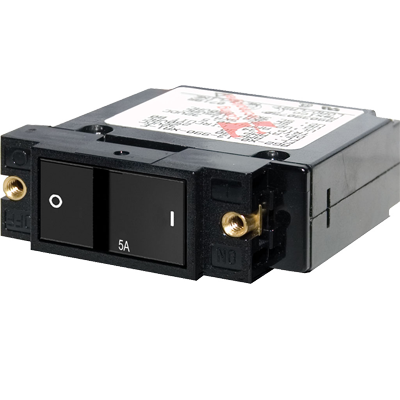

A-Series 5A Single Pole Circuit Breaker (7400) by Blue Sea Systems. This product is great for use in all marine applications. It will satisfy the needs of both pleasure boat enthusiasts and ambitious yacht owners. Get this excellent product for your vessel and prepare to embark on a thrilling adventure.
This product is professionally and meticulously designed to provide superior durability you are looking for. The does not accept compromises when it is going about quality, so you can be completely confident that this product is second to none. It is manufactured from first-rate materials to ensure outstanding reliability. This product provides efficient and worry-free service for many years ahead which makes it the perfect option for your ultimate satisfaction.
Features- Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
- Color actuator indicates "OFF" position
- Trip Free design cannot be held "ON" during fault current condition
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols vertical or horizontal mounting
- CE Marked: The CE marking is applied to products regulated by certain European health, safety and environmental protection legislation
- UL 1077 Rated Supplementary Protectors
Specifications- Amperage: 5A AC, 5A DC
- Actuator Style: Flat Rocker
- Poles: 1
- Maximum Voltage: 240V AC, 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A 125V AC, 1500A 240V AC, 5000A 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycle: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.3 lbs
